V-Bending Force

Description

Calculate the required force to bend a piece of sheet metal using V-bending, a process in which a V-shaped punch presses the sheet into a V-die. The bending force can be calculated from the sheet thickness, die opening, bend length, and the ultimate tensile strength of the material. The die ratio may be entered to calculate the die opening, which is typically 6 to 18 times the sheet thickness. The calculated tonnage can be used for the selection of a machine, such as a press brake, to perform the bending operation.

V-BENDING FORCE CALCULATOR

Input Parameters

in

Sheet Thickness (in)

Die Ratio

in

Die Opening (in)

in

Bend Length (in)

psi

Ultimate Tensile Strength (psi)

Factor of Safety

Results

K-Factor:

-


Bending Force:

- lb


Bending Force:

- tons

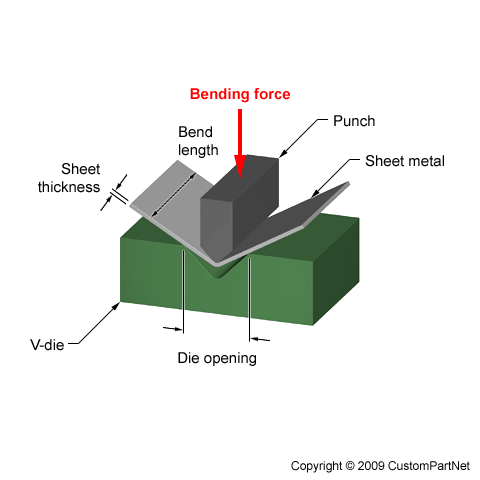

V-Bending Force Diagram
